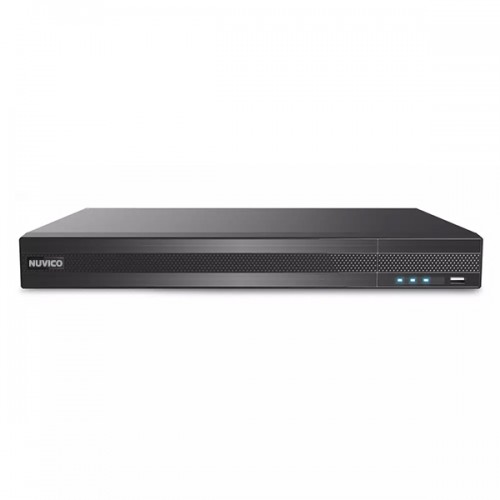

TN-E1600AI-16P Nuvico Xcel Series 16 Channel NVR 160Mbps Max Throughput AI w/ Built-in 16 Port PoE with Up to 36TB Max Storage

The Nuvico Xcel TN-E AI series is available in a 8 or 16 channel model supporting IP video. The TN-E AI series utilizes the most advanced SOC techniques along with H.265S compression format to deliver real time recording, while maintaining quality and maximizing video storage and fluidity. Based on the Nuvico Xcel software platform, the TN-E AI series features a mouse driven, clean GUI for easy local control, and is compatible with the Xcel CMS, Web CMS, and mobile apps.

Specifications

System

• Compression - H.265S / H.265+ / H.265 / H.264
• OS - Embedded Linux

Video

• Input - 16 Channel IP
• Network Access Bandwidth - 160Mbps
• Network Access Format - 25/30fps @ 8MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, 960H, D1, CIF
• Output - HDMI x 1: 4K, 2K, 1920 x 1080, 1280 x 1024, 1024 x 768 VGA x 1: 1920 x 1080, 1280 x 1024, 1024 x 768

Audio

• Network Input - 16 Channel Audio Input
• Output - RCA x 1
• Two-way audio - RCA x 1

Record

• Record Stream - Dual Stream Recording
• Resolution - 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 960p, 720p, 960H, D1, CIF
• Mode - Manual, Timer, Motion, Sensor, POS, AI Recording

Playback

• Playback - Max 16 Channels
• Search - Time slice / Time / Event / Tag Search
• Smart Search - Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
• Function - Play, Pause, FF, FB, Digital Zoom, etc.

Network

• Interface - RJ45 1000Mbps x 1
• PoE Port - RJ45 x 16
• Protocol - TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF
• Web Client - Max 10 Users Online

Alarm

• Mode - Manual, Sensor, Motion, Exception, Smart Events
• Input - 8 Channel Local Alarm Input, Supports IP Alarm Input
• Output - 4 Channel
• Triggering - Record, Snap, Preset, E-mail, etc.

Mobile Device

• OS - iOS, Android

Storage

• HDD - SATA x 2, Max 18TB per HDD
• Local Back Up - U Disk, USB Mobile HDD
• Network Backup - Yes

Port

• USB - USB 2.0 x 1, USB 3.0 x 1 ( One in the front panel and one in the rear panel)
• Remote Controller - Yes

General

• Power Supply - 48VDC, 3.75A
• Power Consumption - ≤ 15W ( without HDD )
• Working Environment - 14°F ~ 122°F
• Relative Humidity - 10% ~ 90% humidity
• Weight - 6.6 lbs (without HDD)
• Form Factor - 1U Rackmount Case
• Dimensions - 14.96" W x 10.43" D x 1.77" H
• Warranty - 3 Years
• Package Contents - Recorder, IR Remote, USB Mouse, Power Cord, Rackmount Ears
